RMB SCM - Construction system

For Permanent Use

RMB SCM modular construction system stands for thoughtful construction, the highest energy efficiency, and durable materials – a modular solution that combines comfort, sustainability, and quick assembly.

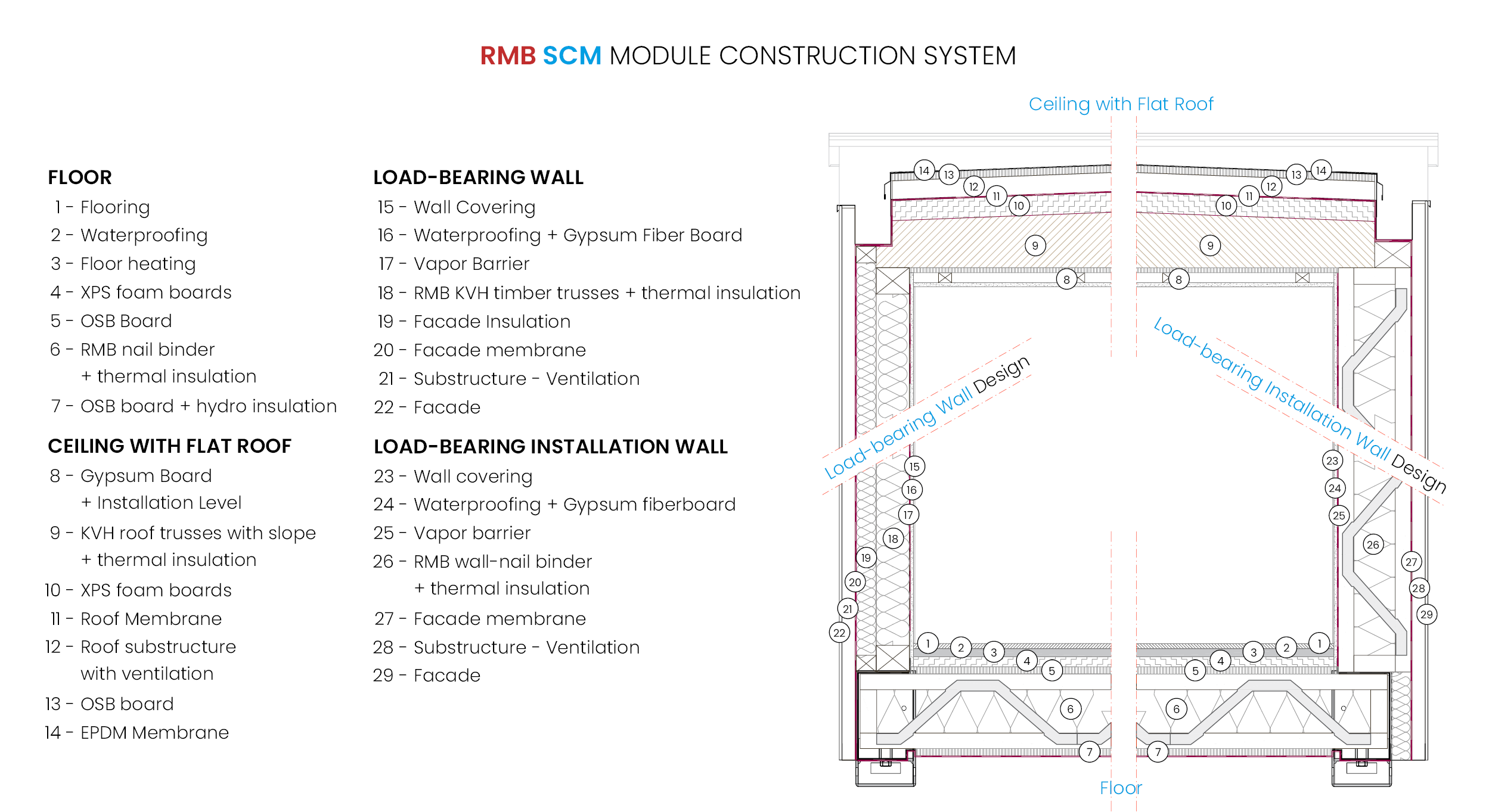

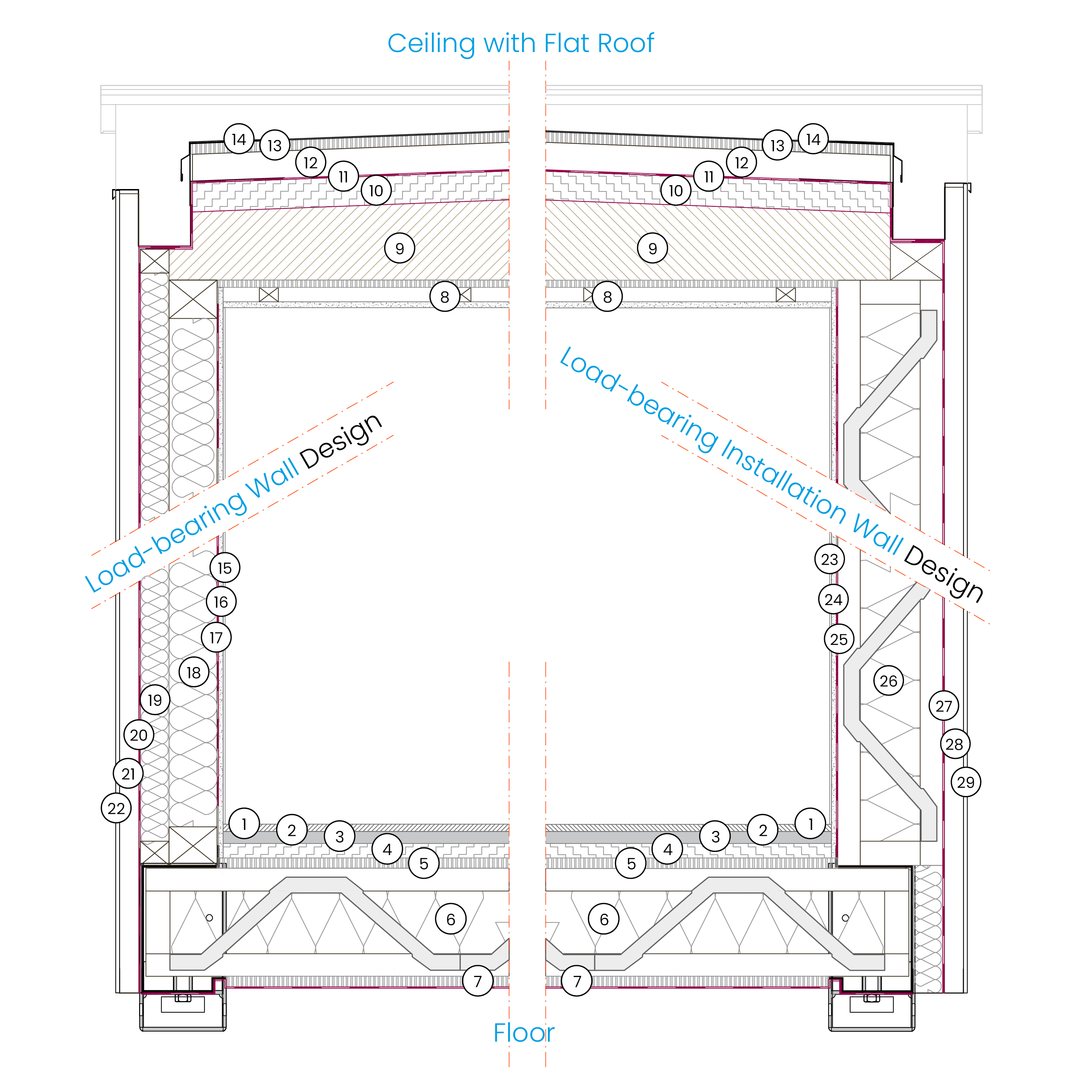

FLOOR

1. Flooring

2. Waterproofing

3. Floor heating

4. XPS foam boards

5. OSB Board

6. RMB nail binder + thermal insulation

7. OSB board + hydro insulation

LOAD-BEARING WALL

15. Wall Covering

16. Waterproofing + Gypsum Fiber Board

17. Vapor Barrier

18. RMB KVH timber trusses + thermal insulation

19. Facade Insulation

20. Facade membrane

21. Substructure - Ventilation

22. Facade

CEILING WITH FLAT ROOF

8. Gypsum Board + Installation Level

9. KVH roof trusses with slope + thermal insulation

10. XPS foam boards

11. Roof Membrane

12. Roof substructure with ventilation

13. OSB board

14. EPDM Membrane

LOAD-BEARING INSTALLATION WALL

23. Wall covering

24. Waterproofing + Gypsum fiberboard

25. Vapor barrier

26. RMB wall-nail binder + thermal insulation

27. Facade membrane

28. Substructure - Ventilation

29. Facade

RMB SCM - Materials

Certified quality materials

Our facade claddings not only provide protection from weathering, but also set architectural accents. Choose from a variety of materials and colors that perfectly match your module.

The interior claddings of our modules are low-maintenance, durable, and aesthetically pleasing. Whether modern surfaces or classic designs – we offer solutions for every taste and requirement.

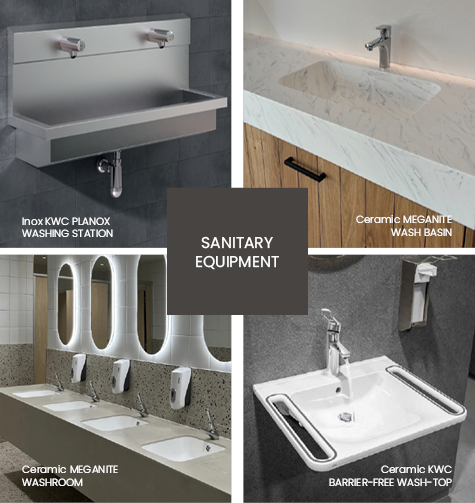

Our sanitary equipment meets the highest standards of functionality and hygiene. From sinks to urinals to showers – all designed for easy cleaning and a long lifespan.

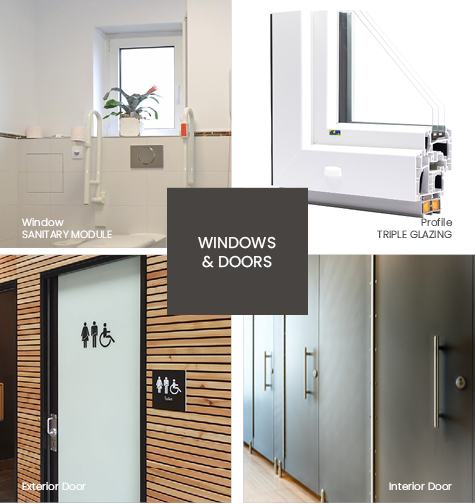

Windows and doors in our modules provide optimal lighting, safety, and thermal insulation. Various designs and materials are available to meet your requirements.

RMB SCM - Assembly options & foundations

The RMB SCM module adapts perfectly as a quick and high-quality expansion of existing infrastructures – either freestanding or as an extension.

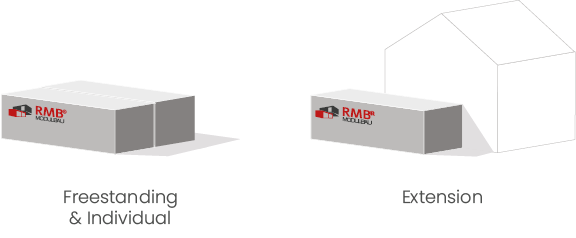

Freestanding or as an extension

Due to its compact design and easy assembly, it is particularly attractive for operators who want to respond to increasing visitor numbers at short notice or expand their offerings in a targeted manner – without sacrificing quality or design.

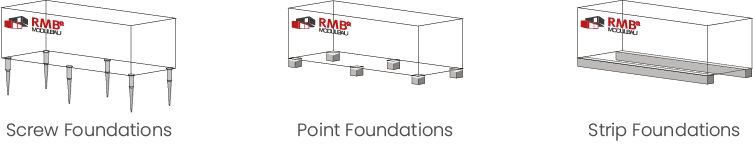

Foundations

RMB SCM modules are typically installed on screw foundations. Depending on the nature of the property, point or strip foundations are also possible. A classic base plate is not required for mounting the modules.

RMB SCM - Technical Features

Smart Solutions

Self-sufficient
System

Independent operation through fresh and wastewater tanks

Ideal for locations without infrastructure

Durable & maintenance-friendly

Intelligent Control

Integration into digital control systems

Remote monitoring & consumption statistics

Centralized control possible

Flexible Connection Options

Photovoltaics, solar thermal & heat pump

Storage solutions for hot water

Connection to grid, generator or wastewater treatment plant

Energy Efficiency & Comfort

Electric or water-based underfloor heating

Year-round operation, weatherproof & durable

Optimal use of renewable energy

High-Quality Equipment

Sanitary facilities: Shower, toilet, sink

Washing & drying units for utility rooms

Durable materials for easy cleaning

Technical Modules

Modules with heating, ventilation & energy management

Technical rooms for easy maintenance

Future-proof infrastructure

Unlike traditional sanitary containers, RMB SCM modules offer a flexible infrastructure that can be individually adapted to any environment and visitor group, from individuals to families and guests with mobility restrictions.
